Lenovo V560/B560

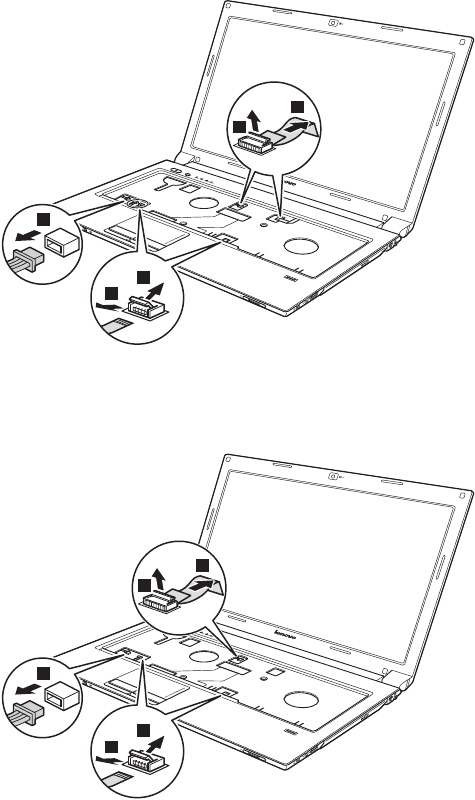

Figure 9. Removal steps of keyboard bezel (continued)

For V560:

Detach ve FPC connectors in the direction shown by arrows

. Unplug the

microphone connector in the direction shown by arrow

For B560:

Detach three FPC connectors in the direction shown by arrows

. Unplug

the microphone connector in the direction shown by arrow

When installing: Make sure that all the FPC connectors and the microphone

connector are attached rmly.
